Specialized in Micro/Commercial brewery equipment, Distillery equipment. With CE, ISO certifications, our equipment has been widely exported to more than 60 countries and regions, such as Germany, Belgium, UK, the United States, Russia, Canada, Australia, Southeast Asia, etc. With long-term cooperative and exchange relations with the American Brewers' Association, Japanese Brewers' Association, we provide the best design in brewing technology and cost-effective equipment.
| Brewing system | Components | Capacity | Specification |
|---|---|---|---|
| Grinding system | Miller | 300KG/H | Double Roller |
| Heating System | Boiler | 100KG/H | Electric, Gas, Oil, Coal Type/CE certification |

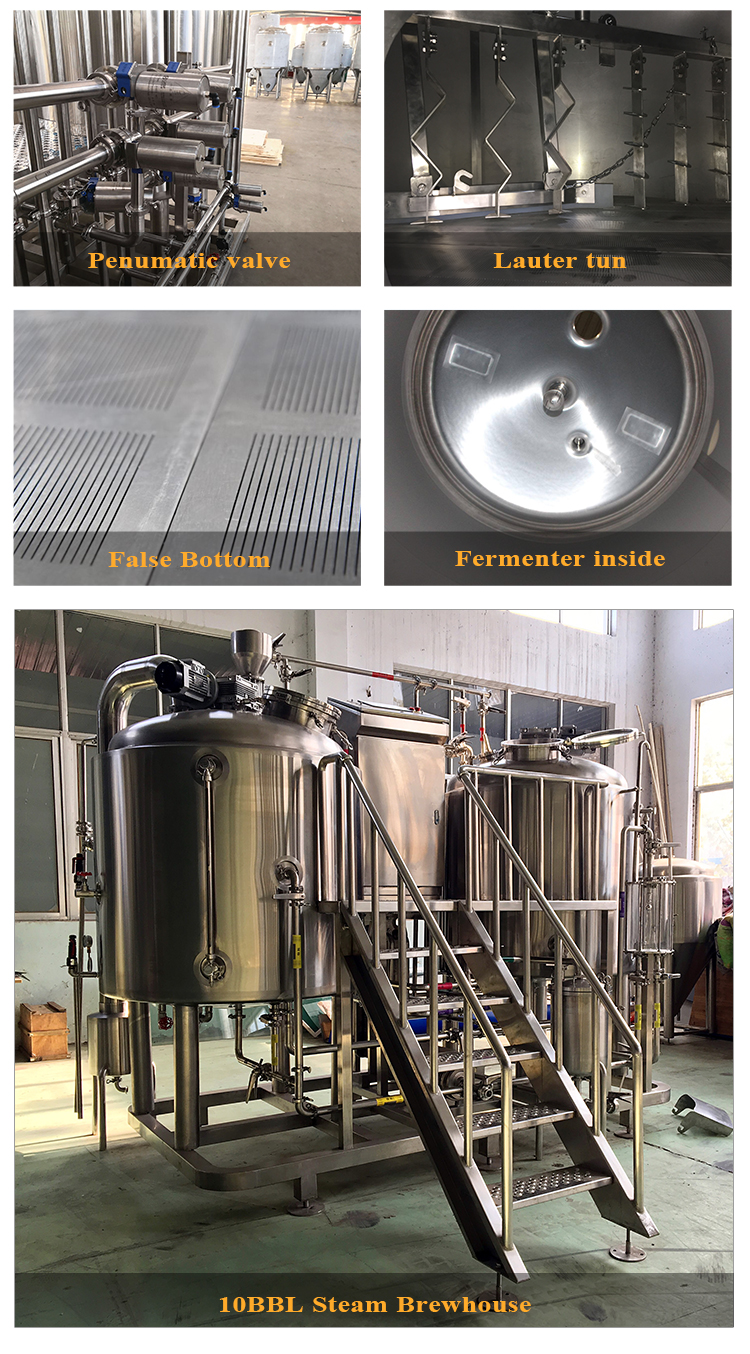

| Brewhouse system | Mash/Lauter tun | 1000L | Heating source: Steam, Electric, Gas Material: SUS304/Red copper Interior thickness: 3mm Exterior thickness: 2mm |
| Brew Kettle/Whirlpool Tank | 1000L | ||
| Hot Water Tank | 2000L | ||
| Plate Heat exchanger | 10SQM | Stainless steel plate | |

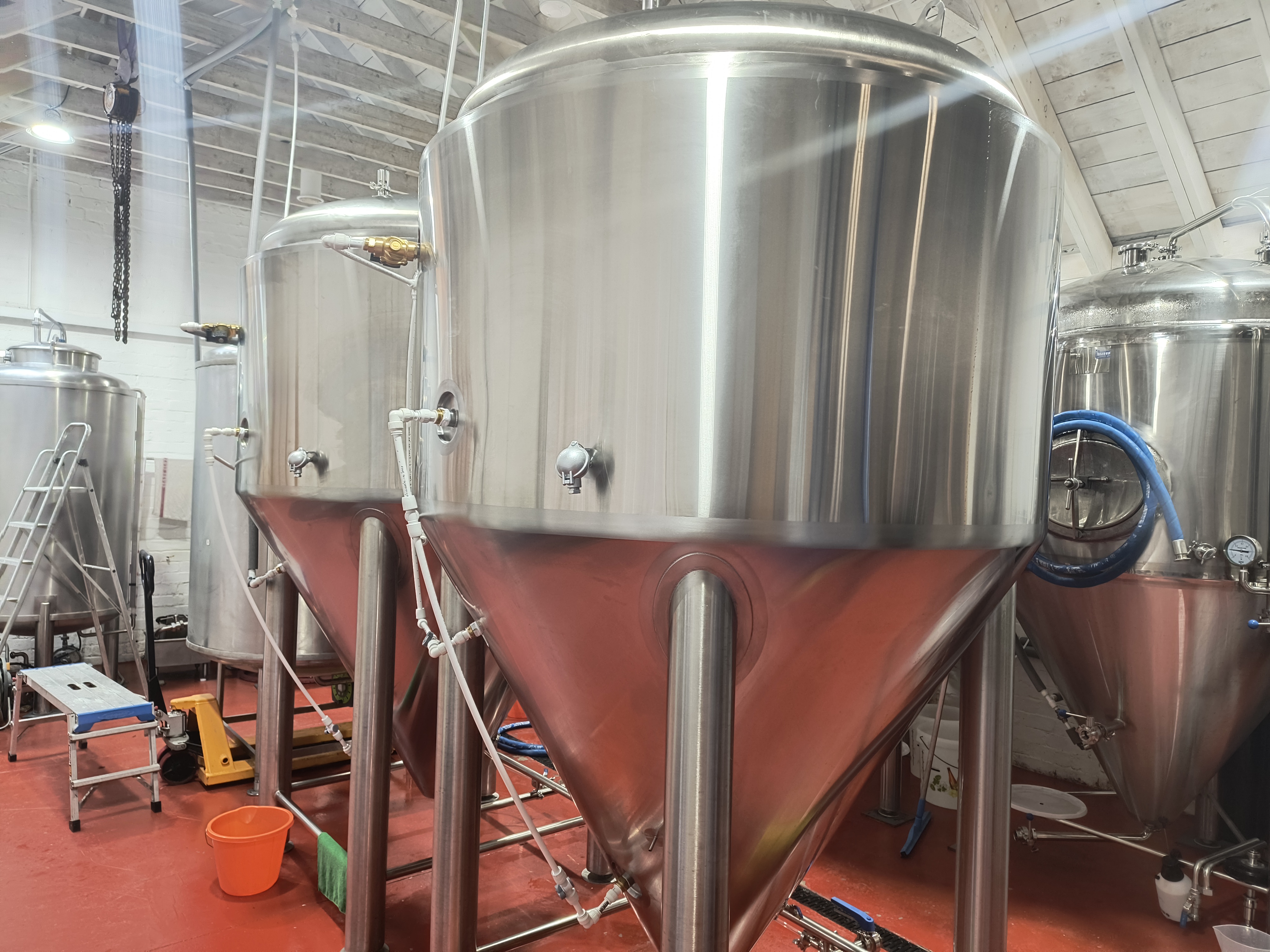

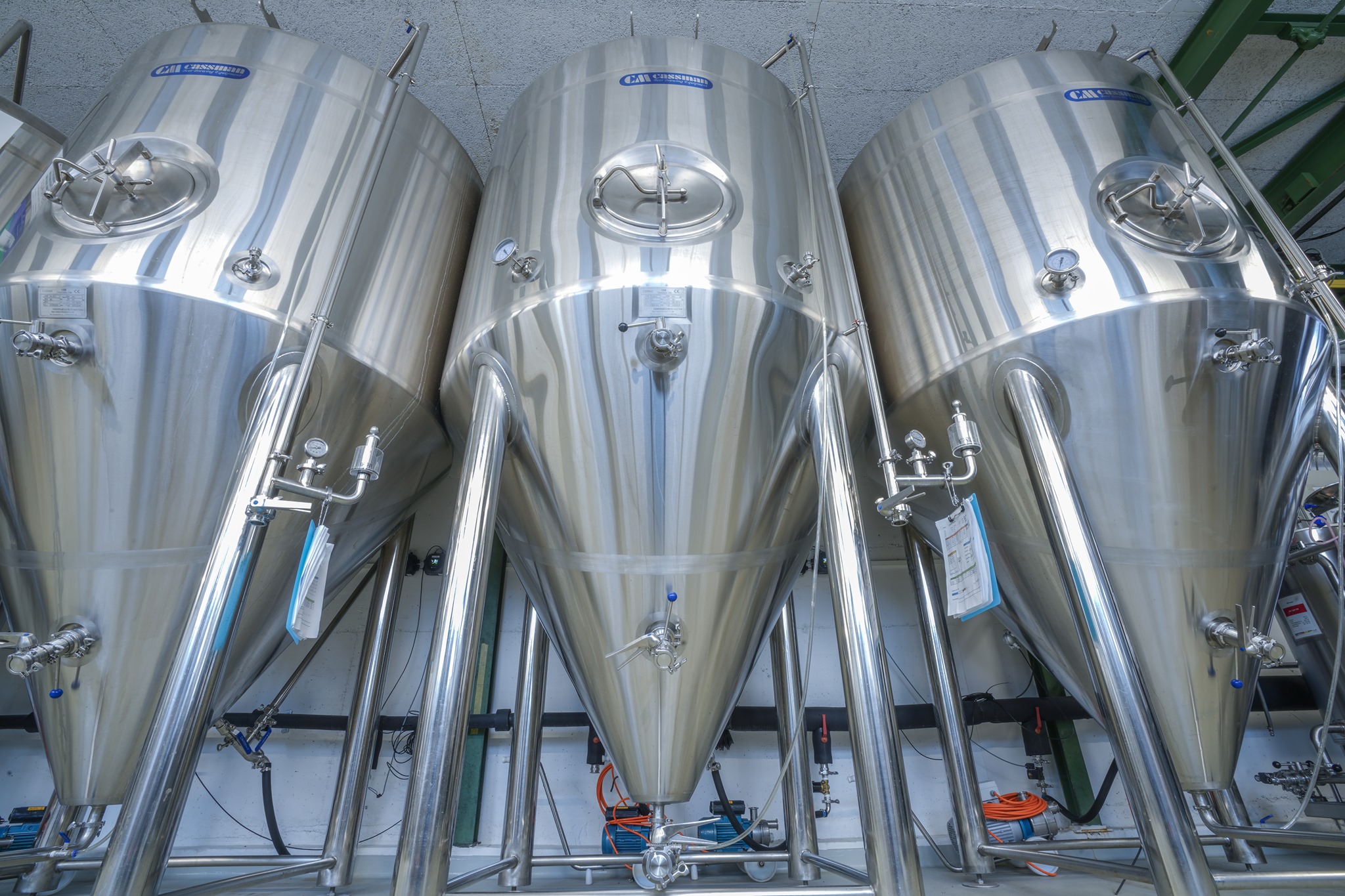

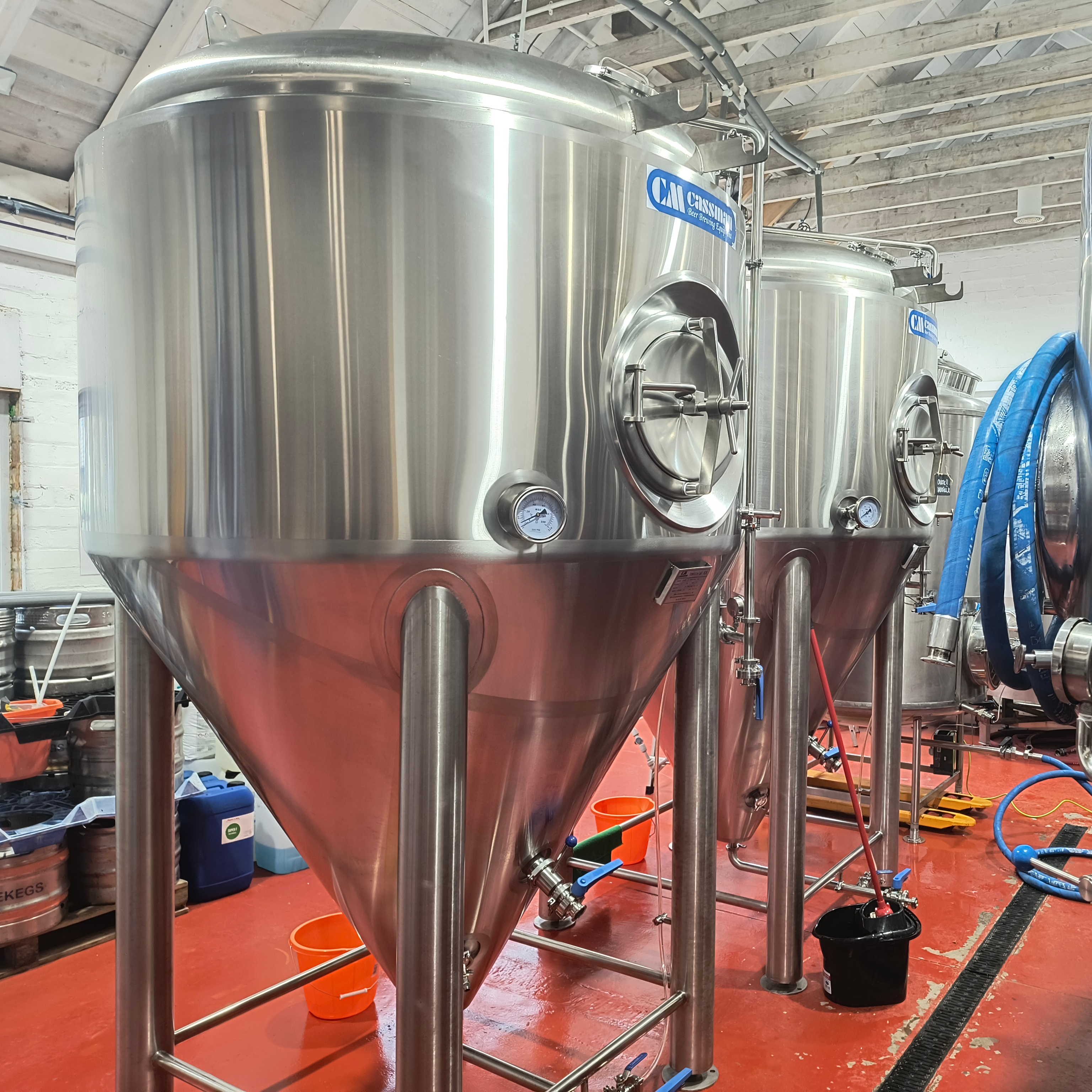

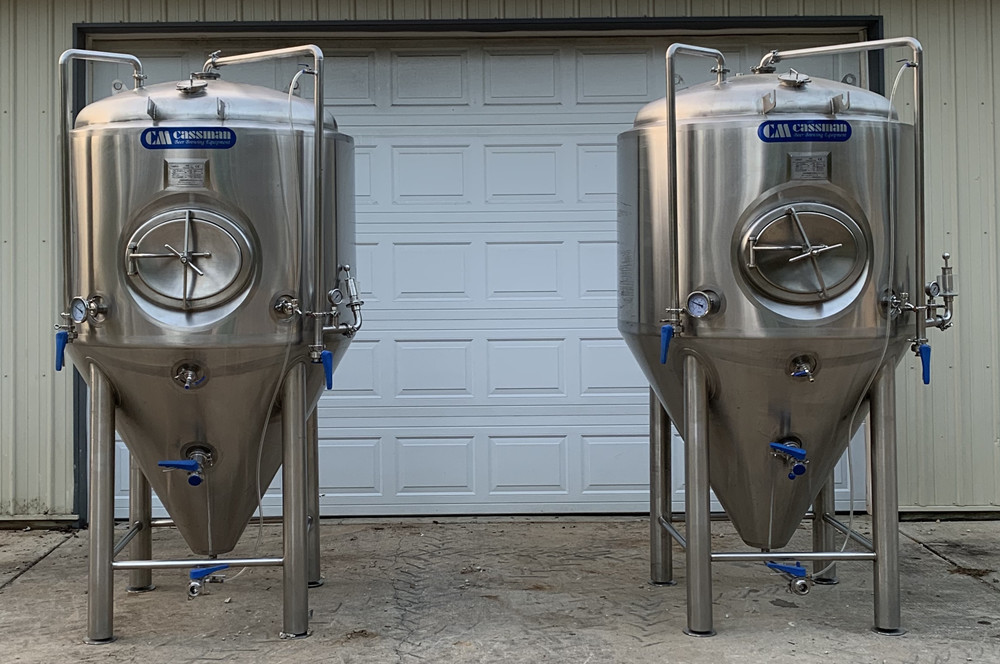

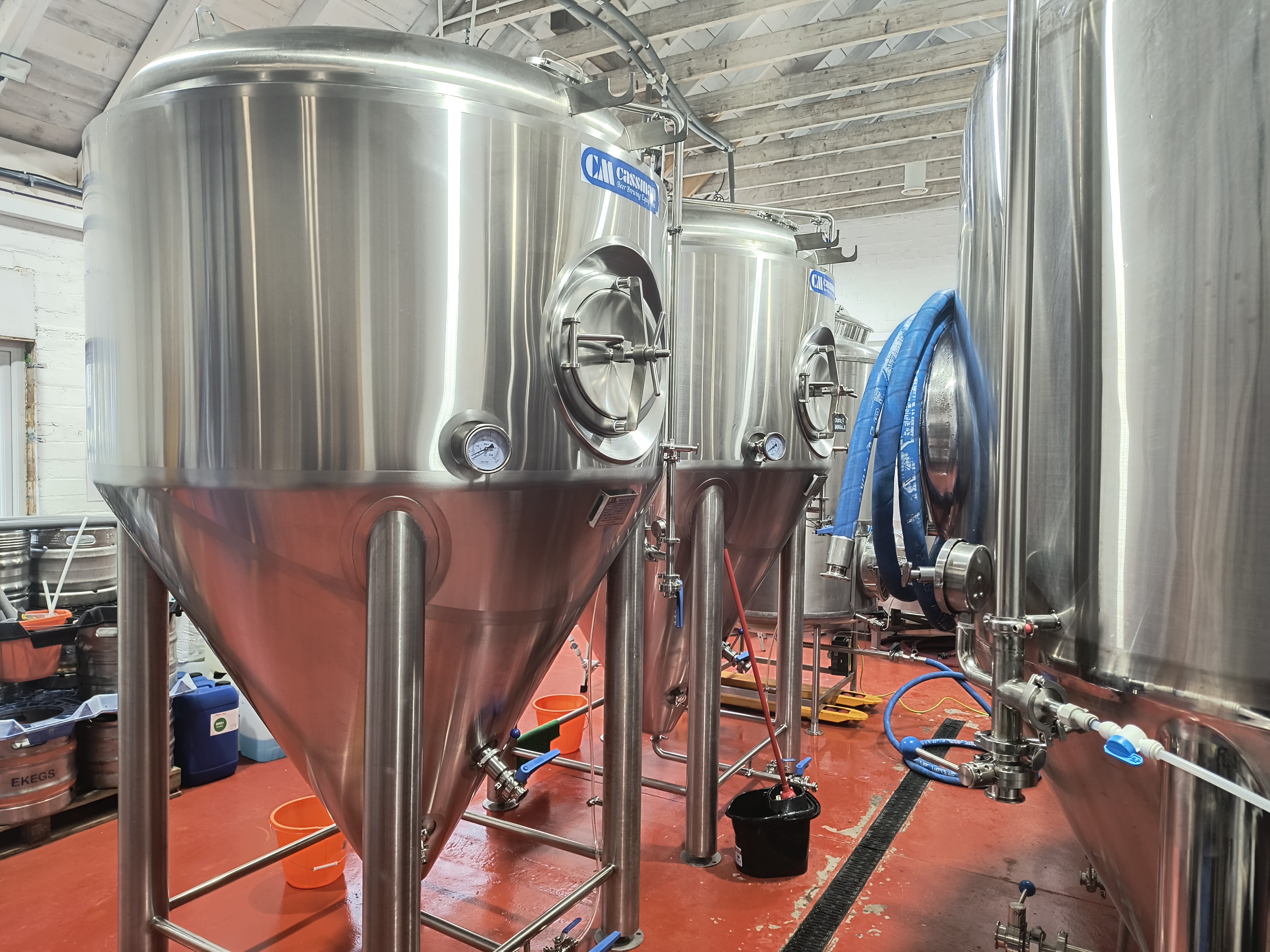

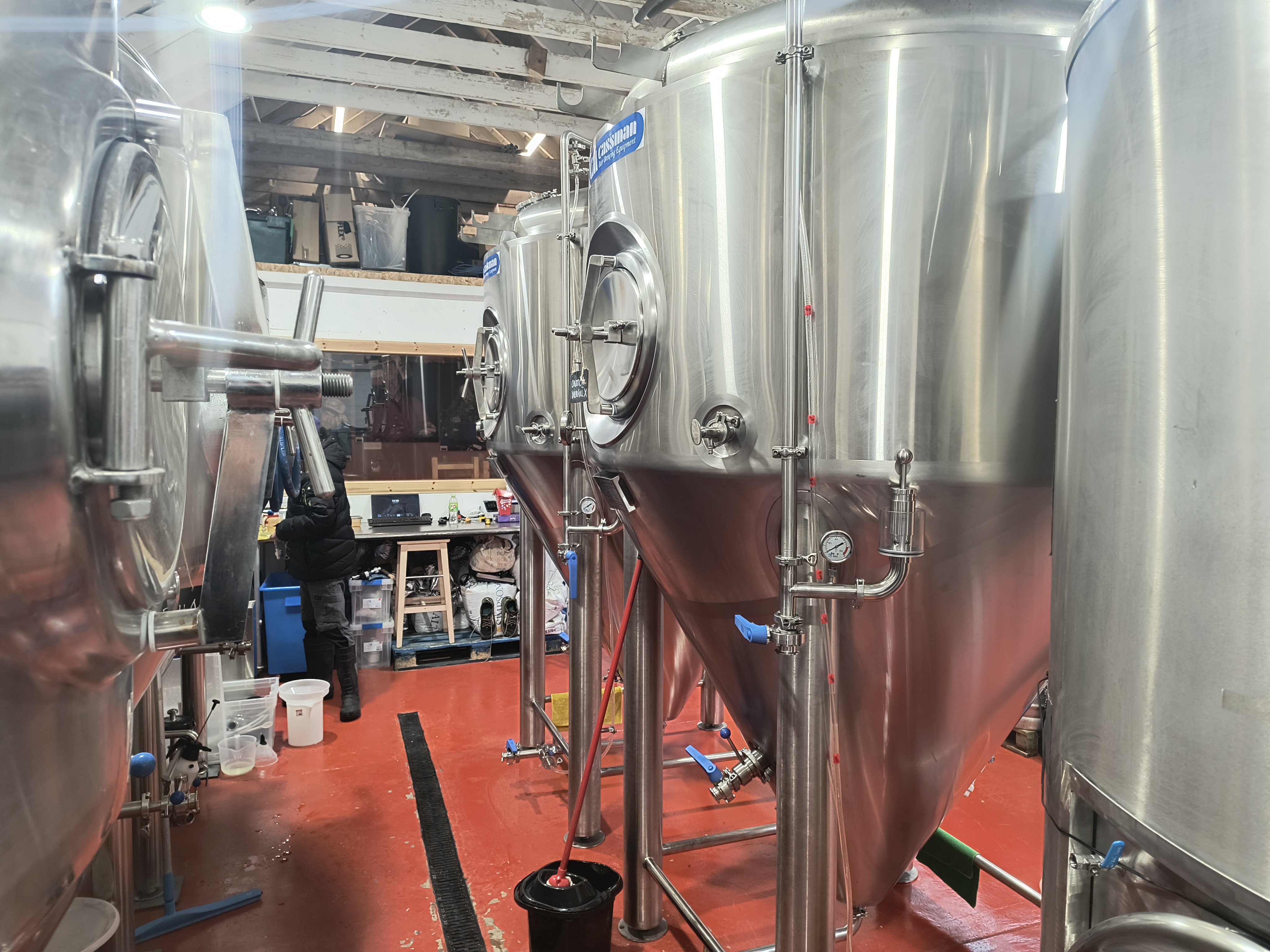

| Fermentation system | Fermentation Tank | 1000L/2000L | Top manhole/Side manhole Drying hop port Dimple Plate Cooling jacket Carbonation port to fill CO2 |
| Yeast Adding Tank | 10L | SUS304 Stainless Steel | |
| Cooling System | Glycol Water tank | 3000L | Providing the ice water for cooling down the wort and beer |
| Chiller | 10HP | UL/CE certified electric elements, Copeland compressor | |
| Pump | 3T | Ice water circulation | |
| Cleaning system | Disinfection Tank | 100L | SUS304 full welded |
| Alkali Tank | 100L | ||
| Pump | 3T | ||
| Control system | Control Cabinet | PID/PLC | Manual/Semi-automatic/Automatic |
| Optional | Auger System | ||
| Grist Cabin | |||
| Grist Hydrator | |||
| Beer Filter Unit | |||
| Bright Tank Unit | |||
| Beer keg filling and washing machine, bottling machine | |||
| Other Facilities: Beer kegs, Water treatment for brew water, Pasteurization System | |||
| Technical Parameter | Power: Custom-design | Voltage: Customized | Floor space: Layout designed based on your floor plan | ||

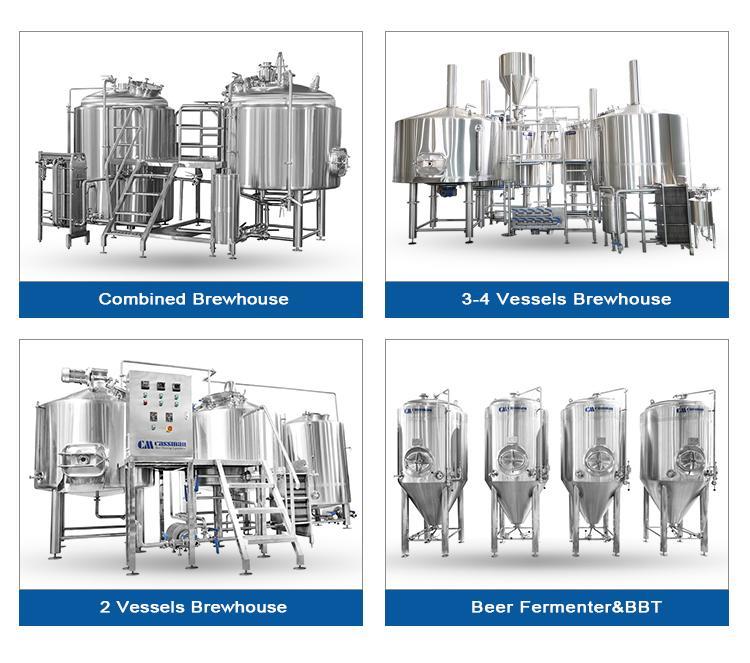

| No. | Brew Length | Vessels | Configuration | Heating | Remark |
|---|---|---|---|---|---|

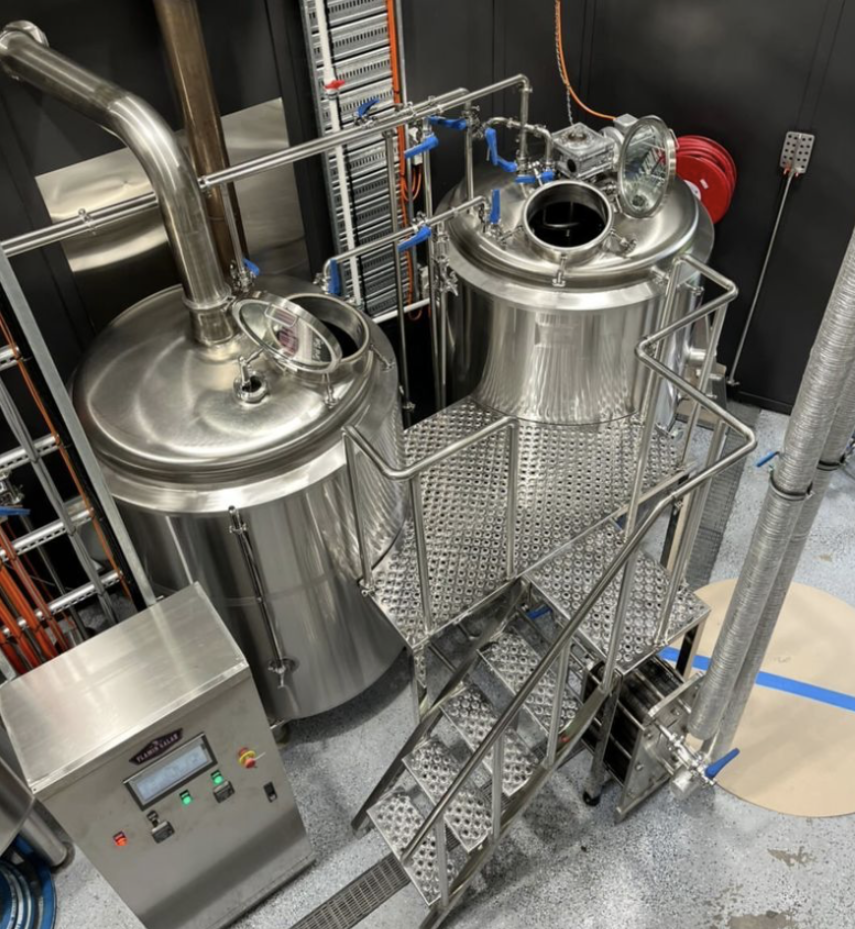

| 1 | 100L | 2 | Mash/Lauter + Kettle/Whirlpool | Electrical/Steam/Gas | With all the necessary pipelines, valves, pumps, heat exchanger, work platform, control system, etc. US-3bbl~60bbl available. |
| 2 | 200L | 2 | Mash/Lauter + Kettle/Whirlpool | Electrical/Steam/Gas | |
| 3 | 300L | 2 | Mash/Lauter + Kettle/Whirlpool | Electrical/Steam/Gas | |
| 4 | 500L | 2 | Mash/Lauter + Kettle/Whirlpool | Electrical/Steam/Gas | |
| 5 | 500L | 2 | Mash/Kettle + Combined Lauter/Whirlpool | Electrical/Steam/Gas | Germany style |
| 6 | 500L | 3 | Mash + Lauter + Kettle/Whirlpool | Electrical/Steam/Gas | Individual three vessels |
| 7 | 1000L | 2 | Mash/Lauter + Kettle/Whirlpool | Steam/Gas | Hot water tank as option |
| 8 | 1500L | 2 | Mash/Lauter + Kettle/Whirlpool | Steam/Gas | Hot water tank as option |
| 9 | 1500L | 3 | Mash + Lauter + Kettle/Whirlpool | Steam/Gas | Individual three vessels |
| 10 | 2000L | 2 | Mash/Lauter + Kettle/Whirlpool | Steam/Gas | Hot water tank as option |
| 11 | 2000L | 3 | Mash + Lauter + Kettle/Whirlpool | Steam/Gas | Individual three vessels |
| 12 | 2000L~5000L | 4 | Mash + Lauter + Kettle + Whirlpool | Steam | Individual four vessels |

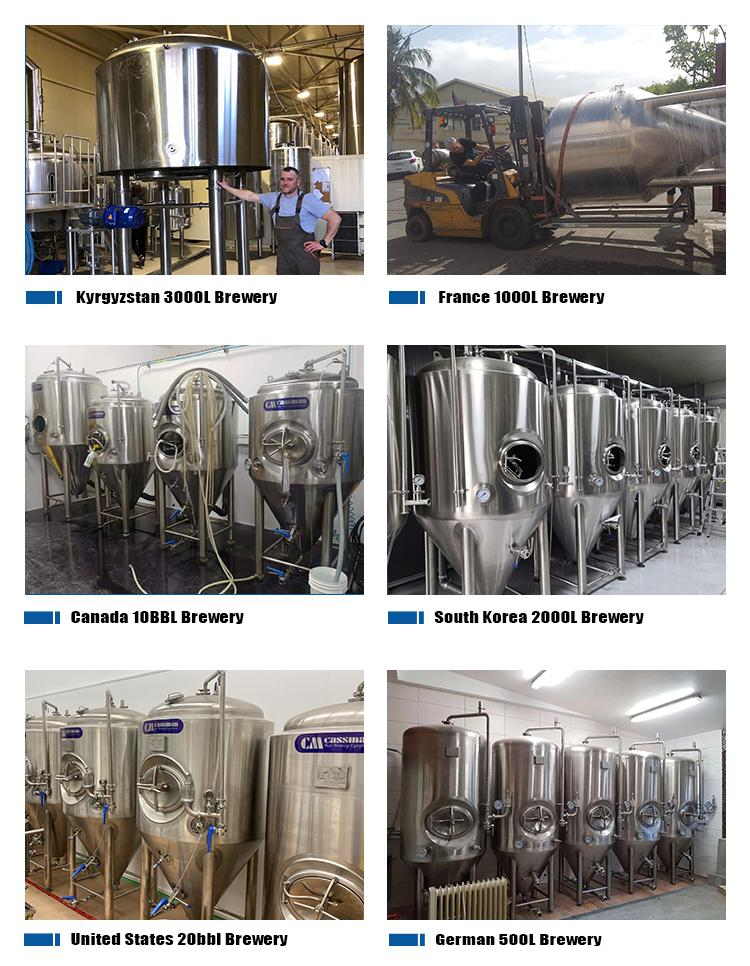

Brewing equipment has been widely exported to more than 60 countries and regions, such as Germany, Belgium, UK, the United States, Russia, Canada, Australia, Southeast Asia, etc. With long-term cooperative and exchange relations with the American Brewers' Association, Japanese Brewers' Association, we provide the best design in brewing technology and cost-effective equipment.
Established in 2016, our manufacturing enterprise is located in the High-tech Zone. We are mainly engaged in beer equipment, whiskey distillery equipment, biological fermentation and environmental protection equipment, etc. We are a production-oriented enterprise with R & D, Manufacture, Sales and Service capabilities. There are more than 40 production employees, more than 10 middle and senior technical personnel, and 8 after-sales service personnel. With the German TUV Rheinland certification, we can design and produce pressure vessels in accordance with the EU CE-PED standard.

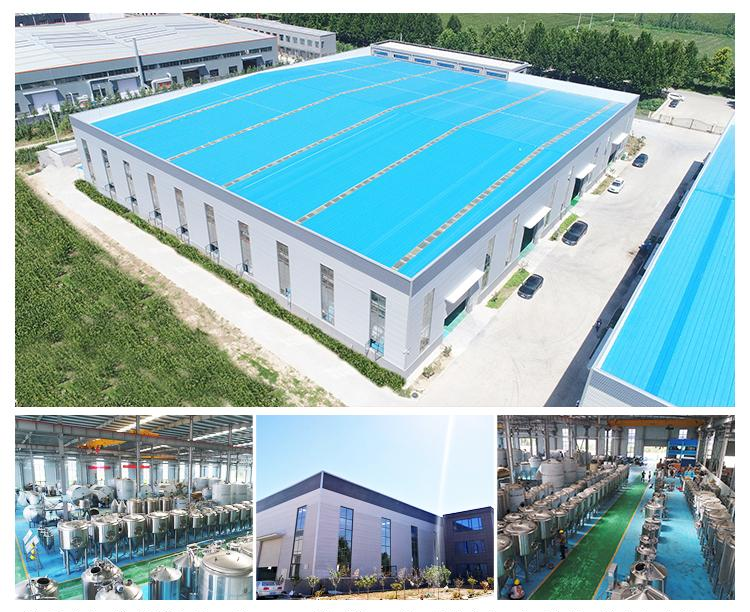

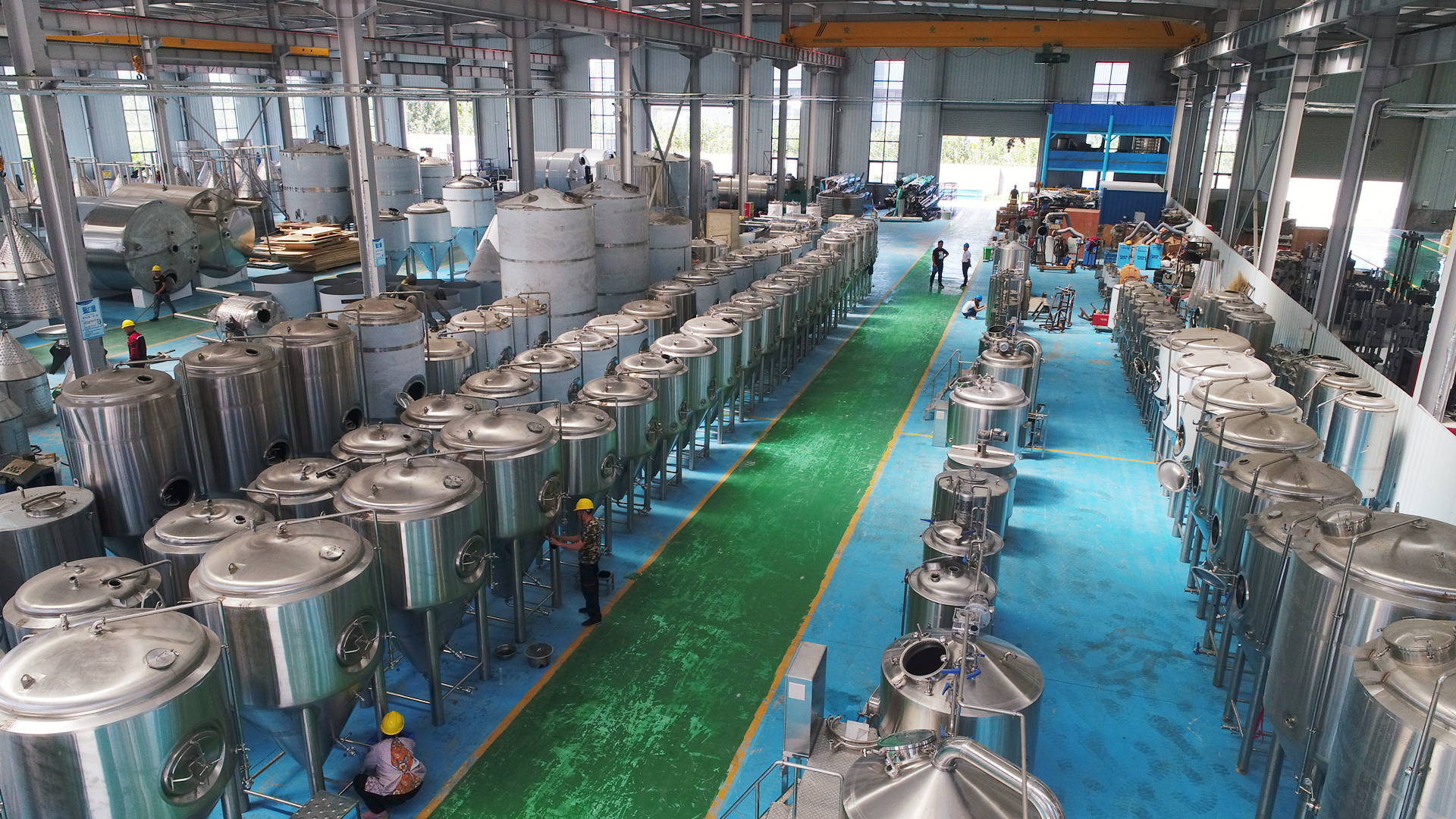

The factory covers an area of nearly 8,000 square meters and it has three processing workshops: container processing, welding and cutting, and assembly and commissioning. It is equipped with laser cutting machines, CNC machines, argon arc welding machines, automatic polishing machines, stainless steel uncoiling & bending machines, pressure vessel detectors and other advanced stainless steel processing and assembly tools.
Equipment warranty includes tank warranty, electric parts warranty, auxiliary parts warranty, etc. We provide 3-5 years warranty for the main tank, 1 year warranty for electrical components and auxiliary parts, and lifetime after-sales service. In order to ensure the normal operation, we can provide spare parts for quick replacement.
During operation, daily maintenance is crucial. We provide comprehensive maintenance guides. If required, we can send technical engineers to the customer's site for repair, adjustment, and general maintenance.
We provide mature design selections alongside standard models of brewing equipment. Custom-made services can be provided as per client requests including brewhouse systems, fermentation tanks, bright beer tanks, distillation equipment, etc.
We assist in drafting layouts for newly built breweries, supplying complete P&ID drawings, electrical connection diagrams, flow charts, and tank dimension blueprints. Detailed 3D rendering designs are also available.
We feature experienced technical engineers to provide on-site installation and debugging instructions. For single tank setups, we supply complete equipment drawings and installation manuals for self-assembly.
