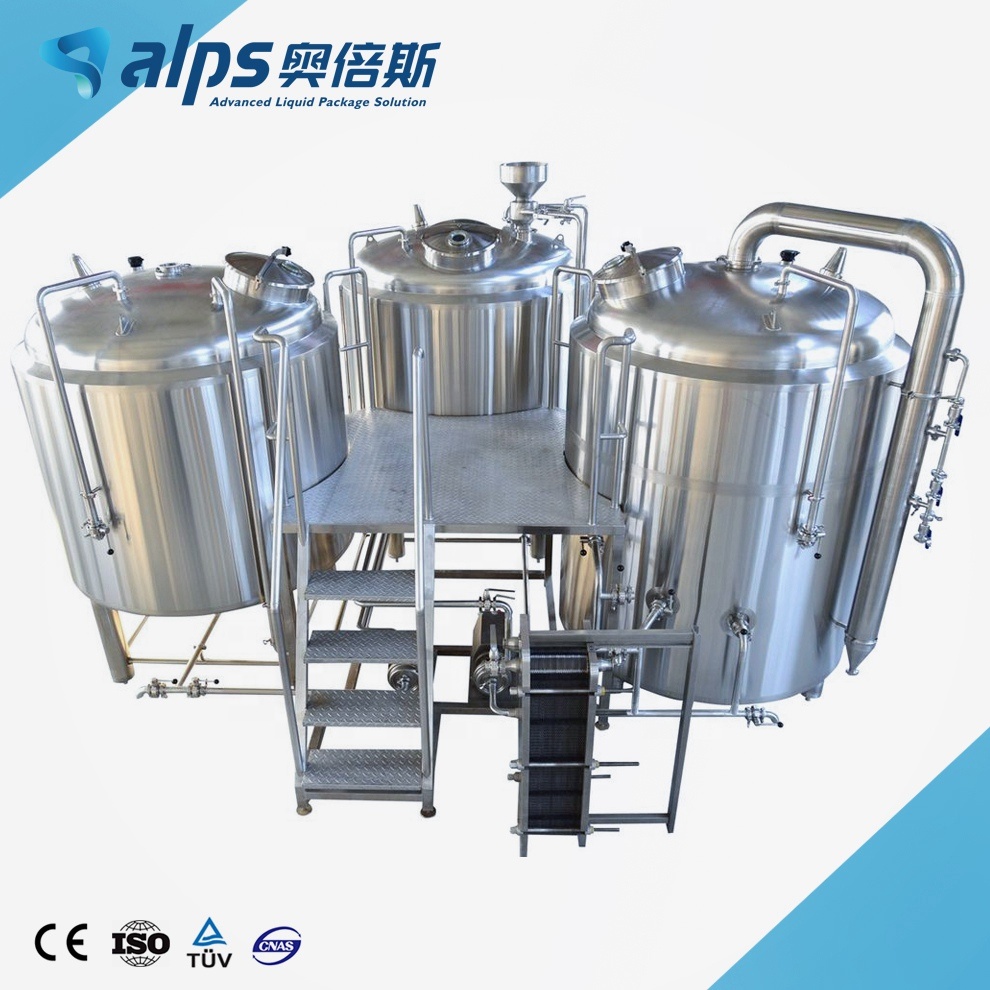

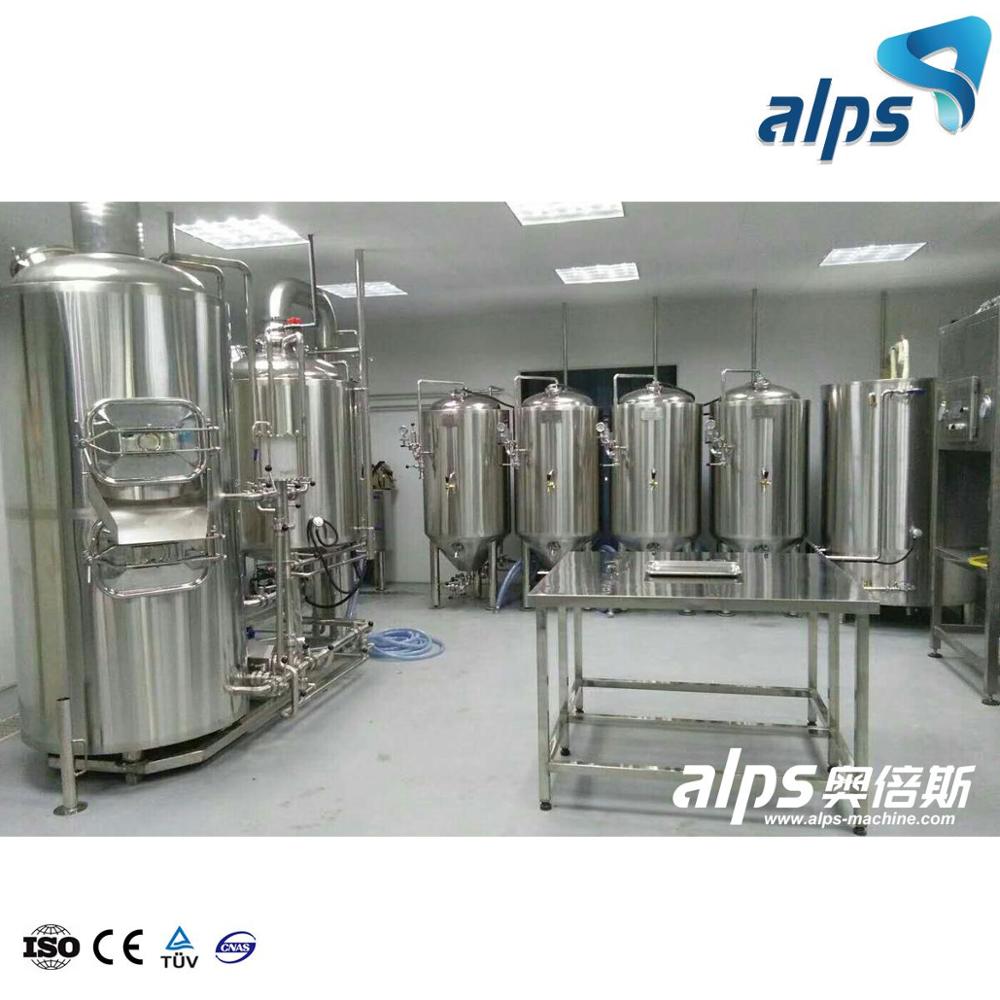

Product Description
We can supply small type craft beer systems and large-scale industrial brewery plants. Constructed from food-grade stainless steel, our equipment utilizes automatic laser cutting and precision welding to guarantee the highest product quality. Furthermore, our advanced systems for material addition, hop dosing, sampling, and liquid level inspection can easily satisfy standard lager brewing techniques, while also meeting the demands of popular ale techniques in the market, such as IPA, PA, and STOUT.
✦
Available Daily Capacities: 200L, 500L, 1000L, 2000L, 3000L, 5000L, 10000L (per day).
✦
Full Lifecycle Support: We provide engineering design, fabrication, installation, operation training, and financing solutions to deliver a flawless turnkey project.
Technical Parameters
| Beer Brewing Equipment (Capacity Per Batch) |
| Model |
LB-0.1 |
LB-0.2 |
LB-0.3 |
LB-0.5 |
LB-1.0 |
LB-2.0 |
LB-3.0 |
| Capacity (Batch) |
100L |
200L |
300L |
500L |
1000L |
2000L |
3000L |
| Cover Area |
15㎡ |
20㎡ |
30㎡ |
45㎡ |
60㎡ |
120㎡ |
300㎡ |
| Electric Power |
15KW |
22KW |
30KW |
40KW |
60KW |
90KW |
120KW |
| Standard Factory Type Beer Brewing Equipment (Capacity Per Year) |
| Model |
LBg-3000 |
LBg-5000 |
LBg-10000 |
LBg-20000 |
| Capacity (Per Year) |
3000T |
5000T |
10000T |
20000T |
| Cover Area |
1500㎡ |
30000㎡ |
7000㎡ |
10000㎡ |
| Electrical Power |
300KW |
500KW |
700KW |
1100KW |

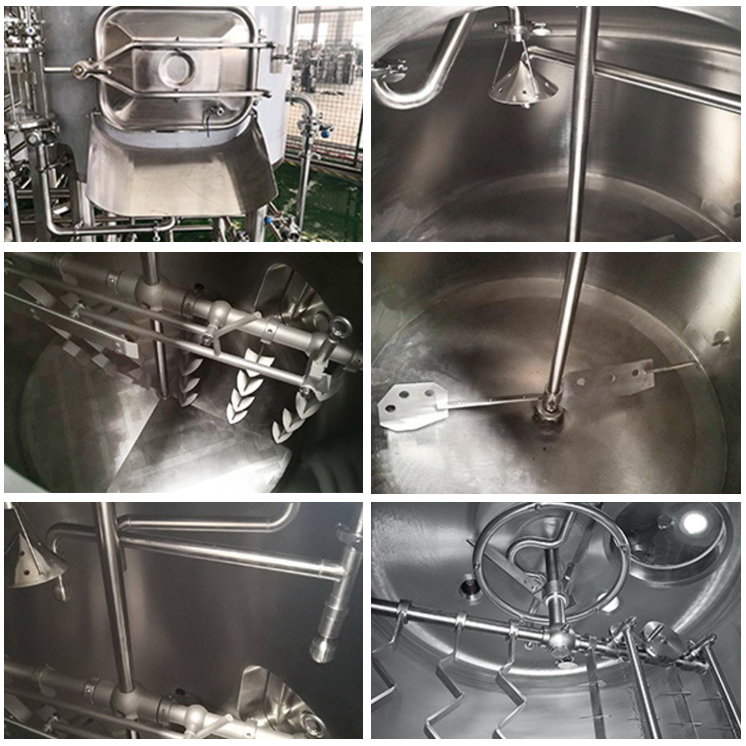

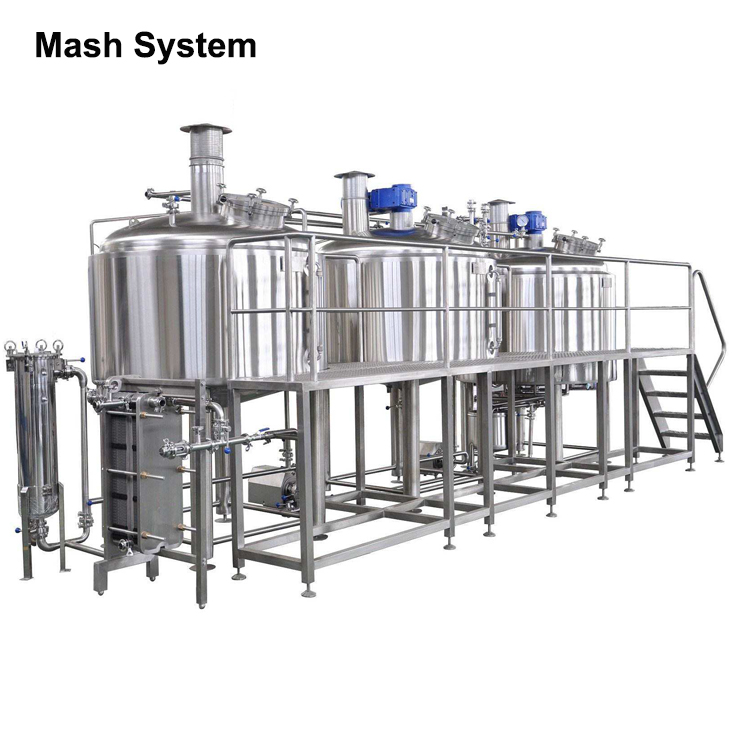

Mash System
The mash system primarily consists of a mash tank, filter tank, and hot water tank. We offer standardized and custom configuration setups ranging from 100L to 3000L. All structural contact parts are made of high-quality stainless steel conforming to international sanitary standards. Following advanced methodologies, the exterior can also be finished with polished red copper for aesthetic appeal and enhanced thermal properties.
Our fabrication employs CNC plasma cutting, high-precision laser routing, and pure argon-shielded welding to achieve smooth, aseptic joints. Thermal transfer is maximized via custom-designed dimple jackets using steam-flow principles, insulated with premium imported polyurethane. The entire system is engineered for simple operation, stable control, and zero-dead-corner sanitation.

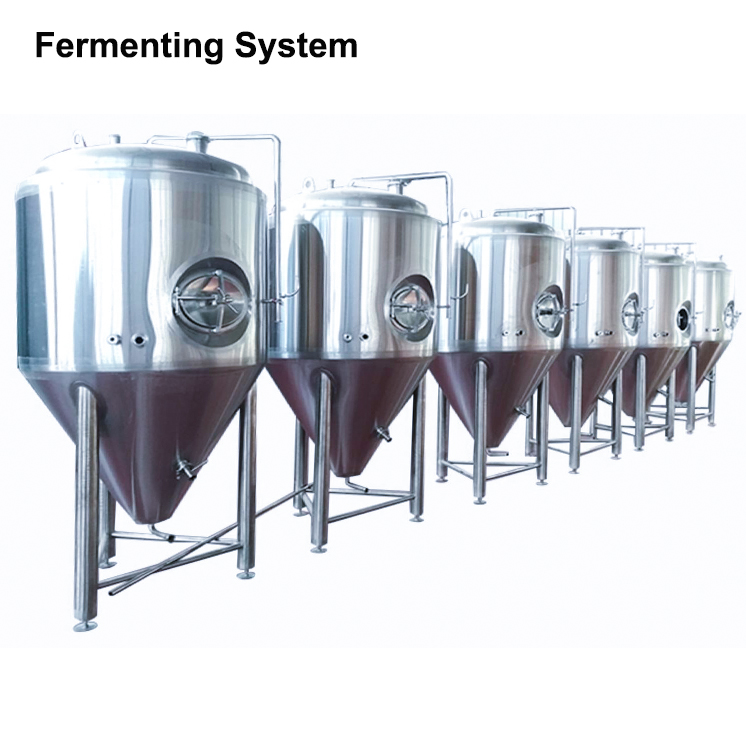

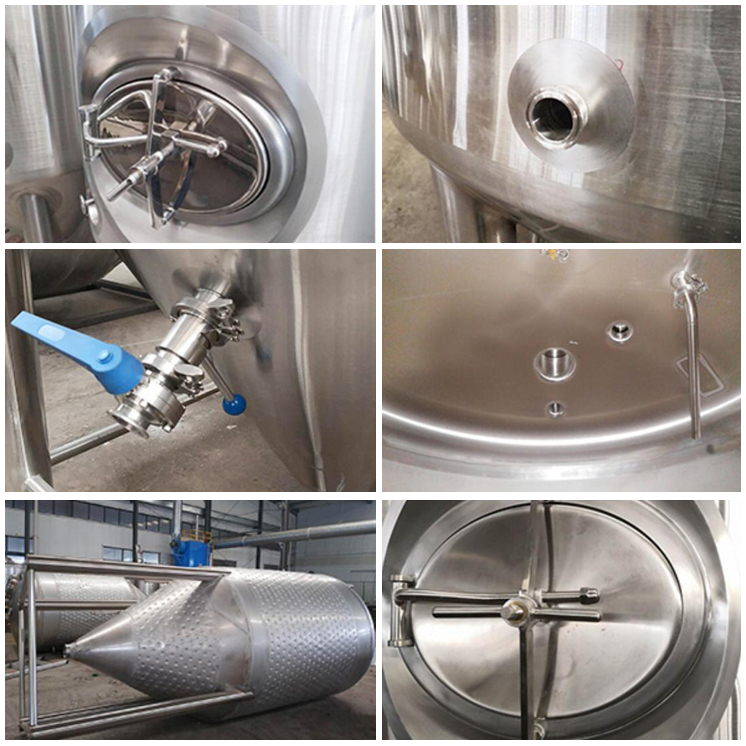

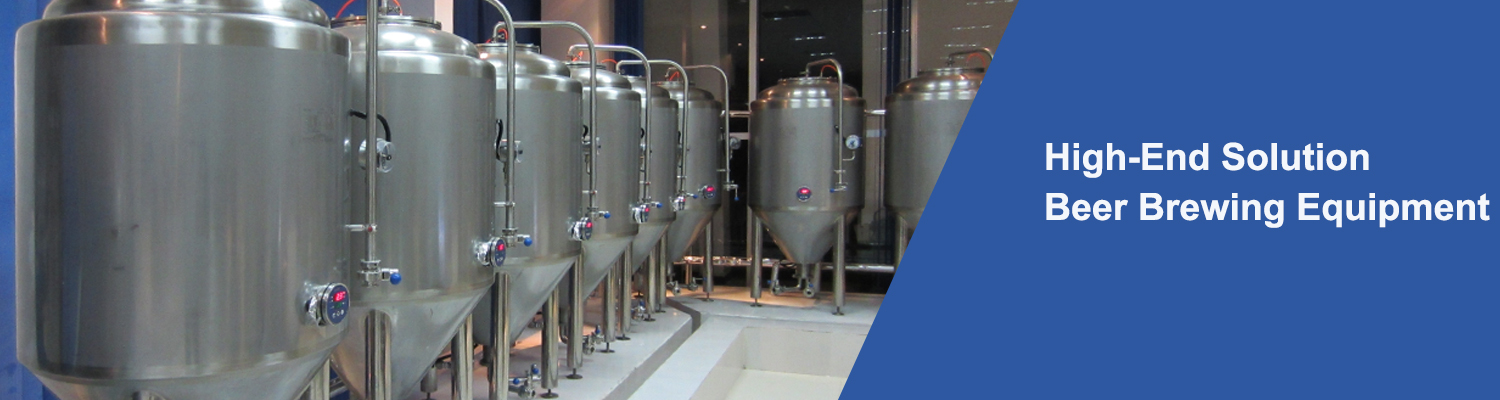

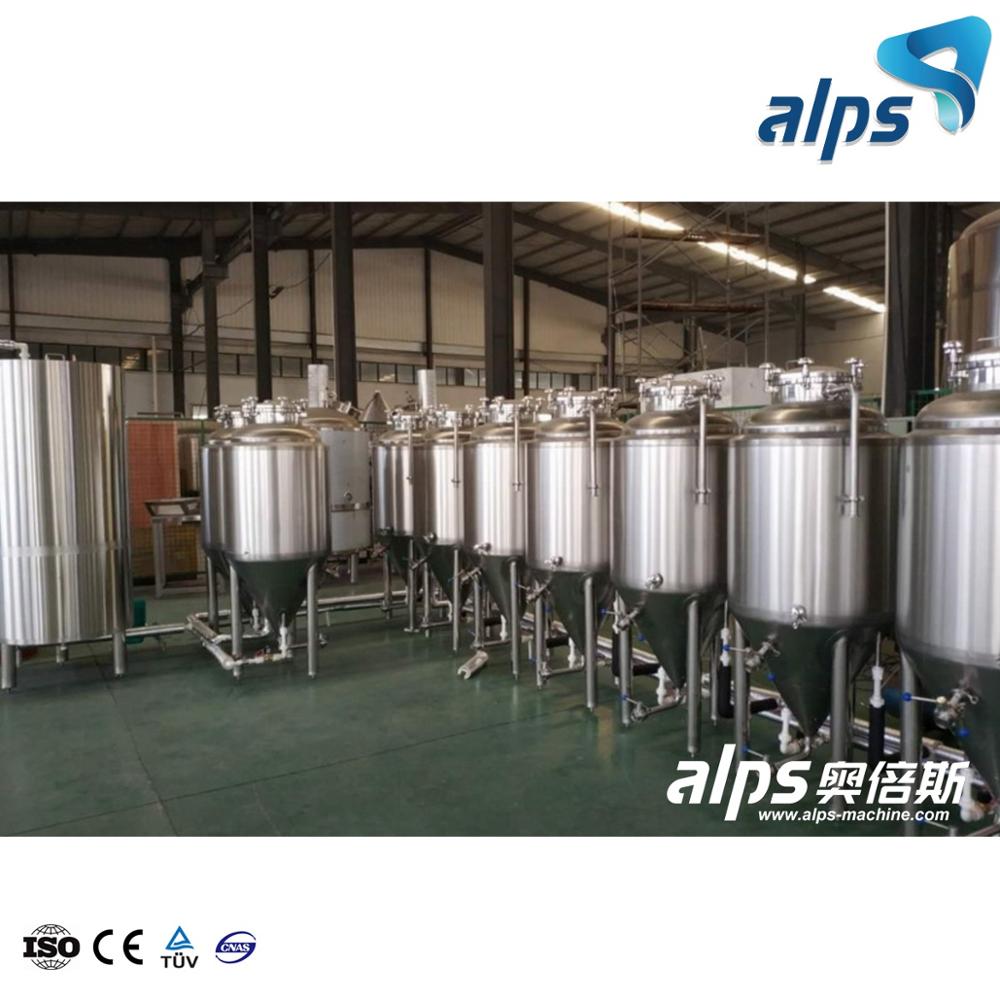

Fermentation System
Our standard fermentation setups feature 6 to 12 fermenting tanks, adjustable from 100L to 2000L capacities. The interior walls achieve a polished smoothness of less than 0.6um. Cooling jackets implement dimpled plates or multi-channel routing to optimize heat exchange. Built-in piping networks facilitate CIP washing, cooling media circulation, and CO2 monitoring. Integrated PLC auto-control ensures precise temperature controls, while high-accuracy yeast concentration detectors offer online microbial cell testing.
Turnkey Project Services
❖ On-Purchase Service

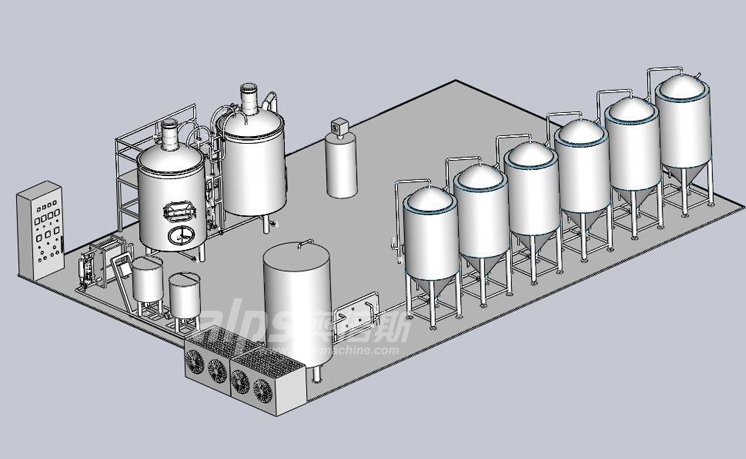

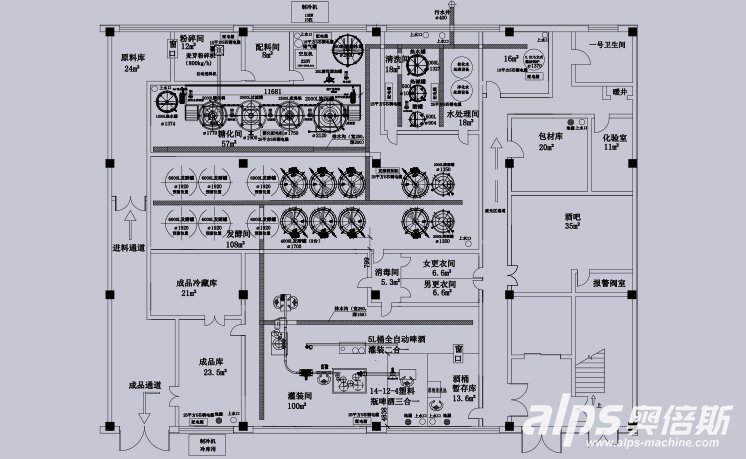

- Customized factory design and workflow optimization.
- Strategic sourcing of high-performance components and fittings.
- Strict pre-delivery inspection, drawings check, and pressure testing.
❖ After-Sale Service
- On-site logistics support, unpacking, and detailed inventory check.
- Deployment of senior engineers for installation and commissioning.
- Operational crew training and comprehensive 24/7 online technical support.

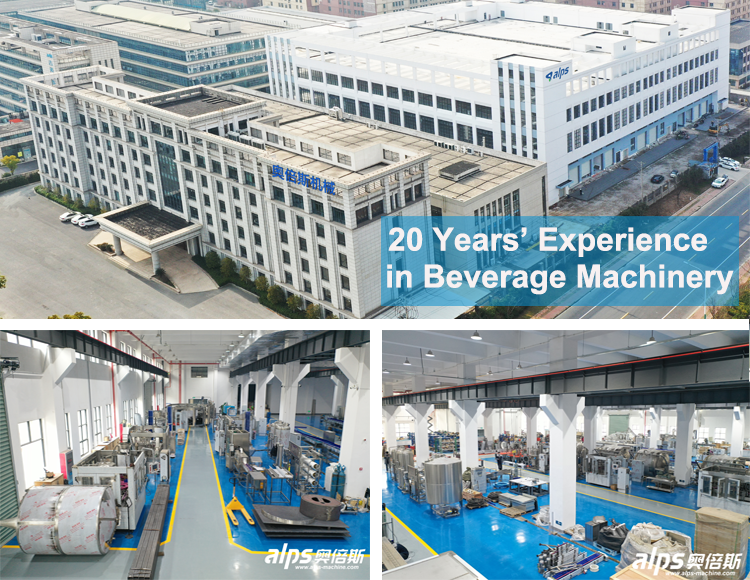

Production & Quality Control
✔
Standardized workshop spanning 12,000 square meters.
✔
Advanced tooling: water jet cutters, plasma cutters, laser cutters, and CNC machinery.
✔
Compliance with ISO9001:2001, CE, SGS, COC, and TUV requirements.
✔
All machinery is run and inspected for 24 hours prior to delivery.
Product Catalog & Solutions
We specialize in integrated production systems for beverages and liquid foods, covering mineral water, fruit juice, carbonated beverages, energy drinks, wine, beer, edible oil, and dairy products.
Certifications

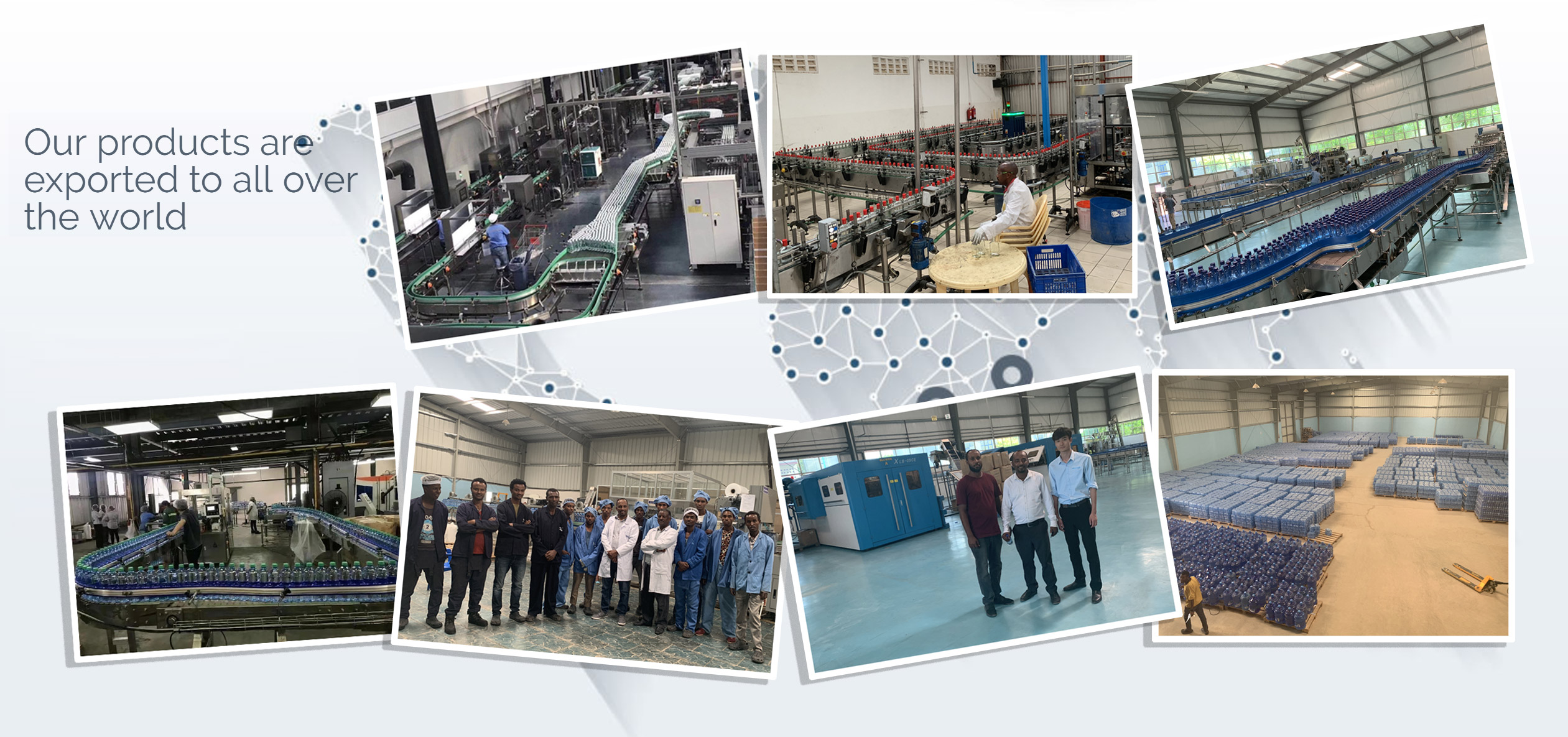

Global Customer Visits
Frequently Asked Questions
Q1: How can you help me design and start a new beverage or brewery plant?
We assist from the initial stages by helping with layout planning, process flow design, matching machine capacities, and optimizing space in your facility. Our team also provides support for package configuration and on-site staff training to ensure smooth project initiation.
Q2: What is the warranty terms of the brewing and packaging machinery?
We offer an 18-month warranty on all mechanical structures and main frame components, and a 12-month warranty on electrical parts. Replacement components are shipped swiftly during this period.
Q3: How do we verify and test our machinery before shipment?
Before shipping, we run and test all machines continuously for 24 hours under production conditions. Customers are welcome to visit our manufacturing center for dynamic inspection, or we can provide detailed testing videos.
Q4: How can I verify the build quality before placing an order?
We have running installations across many global markets. With permission from our local clients, we can coordinate site visits so you can inspect our equipment in live operating environments. You are also welcome to inspect active builds at our manufacturing facility.
Q5: Can you provide complete turnkey plant projects from A to Z?
Yes, we provide end-to-end turnkey packages. This covers everything from container mold fabrication and blowing to water treatment plants, carbonation mixing systems, filling, labeling, and complete outer packaging equipment.
Q6: Do you supply technical support and operator training after installation?
Yes, we deploy skilled service engineers to manage installation, commissioning, and validation on-site. They will stay to train your technicians in operational safety, troubleshooting, and daily maintenance procedures.
